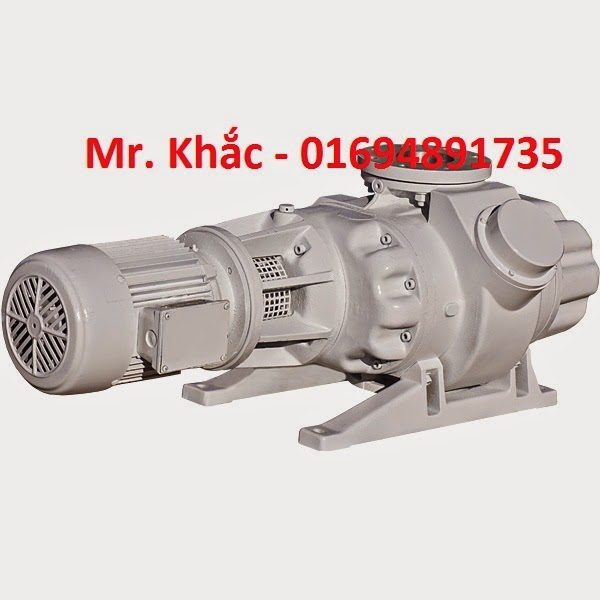

The series RUVAC WA Roots vacuum
pumps are provided with directly flange-mounted air-cooled standard three phase
motors. The oiled radial sealing rings of the RUVAC WA for sealing the shaft
against the atmosphere are made of FPM (FKM) (fluor polymer). Roots vacuum
pumps of the series RUVAC WAU are provided with an additional integrated
pressure equalization line and a differential pressure valve. Pumps from these
series are supplied with a vertical pumping action as standard.
RUVAC WA/WAU 251
Pumping
speed: 253 m3/h
Ultimate
pressure: < 8 x 10-4 mbar
3-ph
motor: 220-240/380-420V, 50Hz / 220-277/380-480V, 60Hz
Operating
fluid: LEYBONOL LVO 100
RUVAC WA/WAU 501
Pumping
speed: 505 m3/h
Ultimate
pressure: < 4 x 10-2 mbar
3-ph
motor: 220-240/380-420V, 50Hz / 220-277/380-480V, 60Hz
Operating
fluid: LEYBONOL LVO 100
RUVAC WA/WAU 1001
Pumping
speed: 1.000 m3/h
Ultimate
pressure: < 4 x 10-2 mbar
3-ph
motor: 220-240/380-420V, 50Hz / 220-277/380-480V, 60Hz
Operating
fluid: LEYBONOL LVO 100
RUVAC WA/WAU 2001
Pumping
speed: 2.050 m3/h
Ultimate
pressure: < 4 x 10-2 mbar
3-ph
motor: 380-420V, 50Hz / 380-480V, 60Hz
Operating
fluid: LEYBONOL LVO 100
